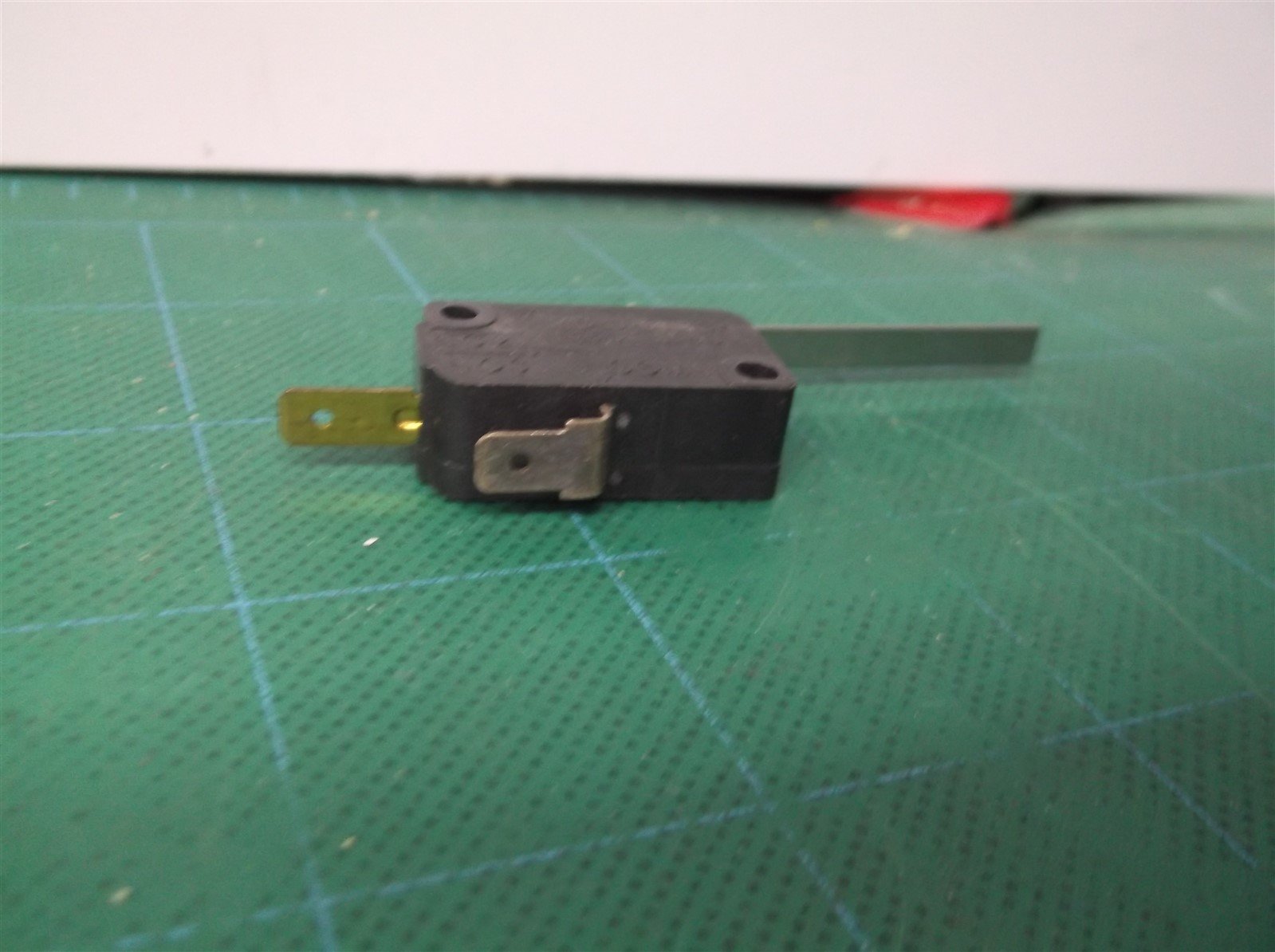

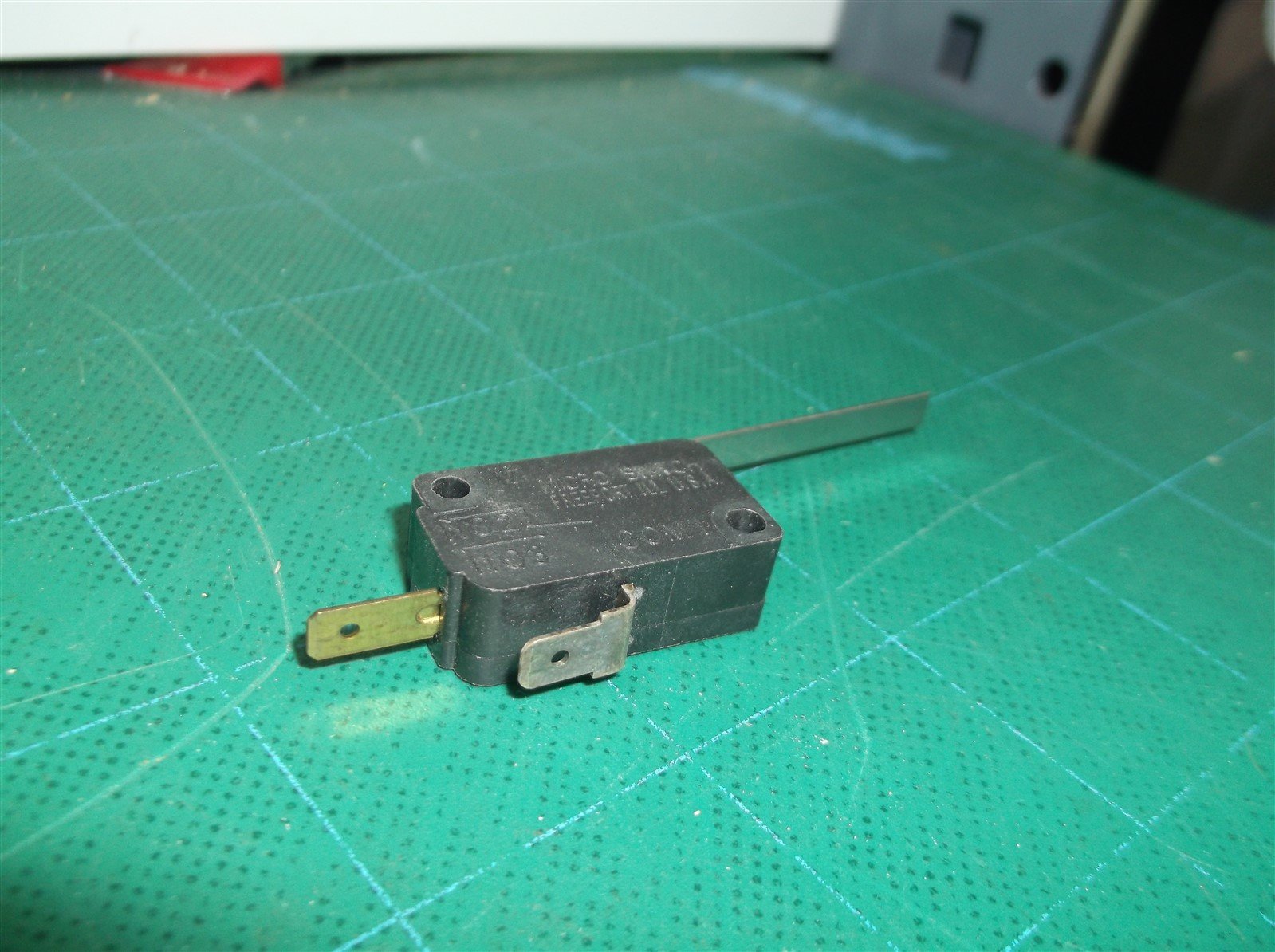

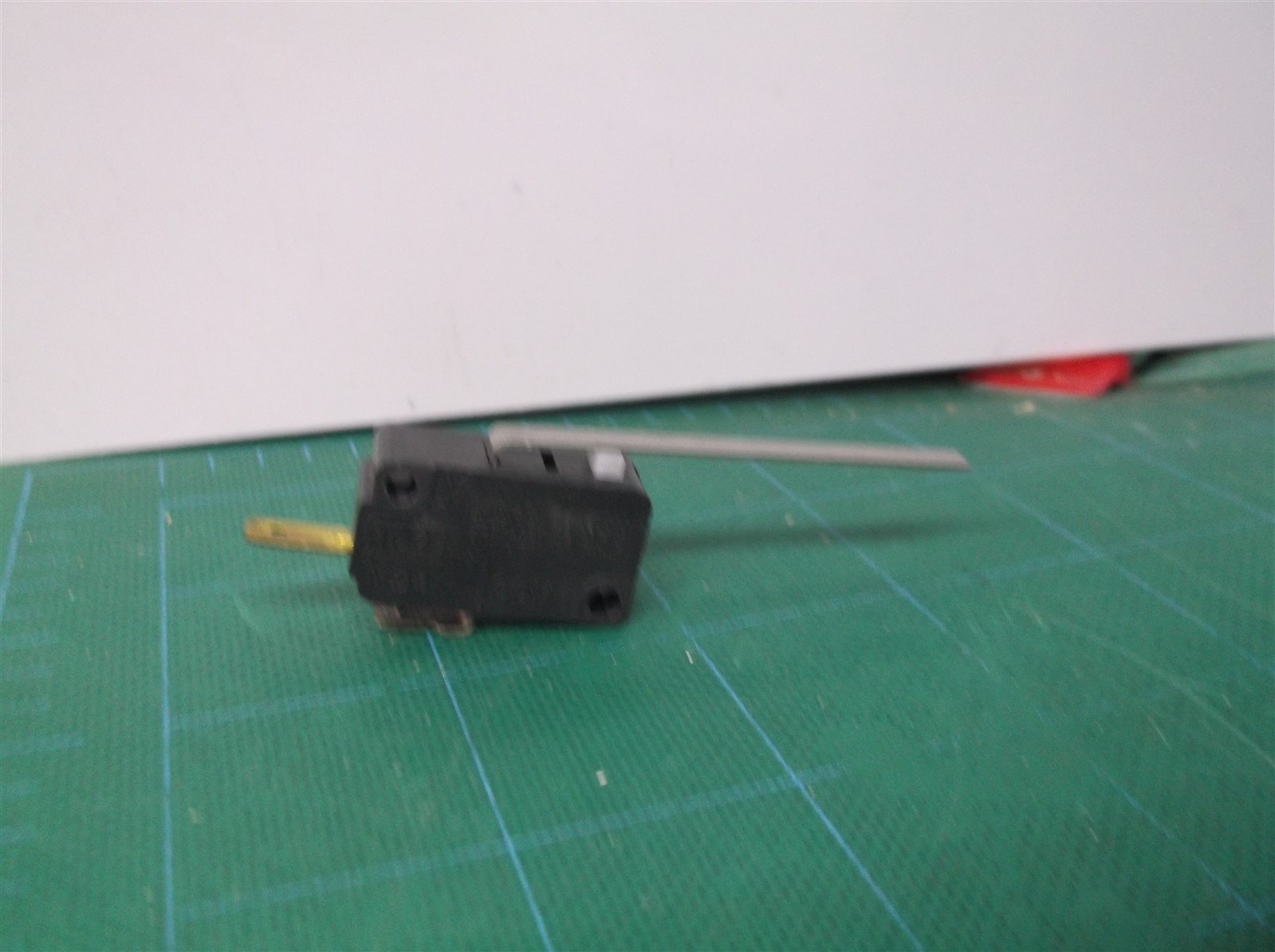

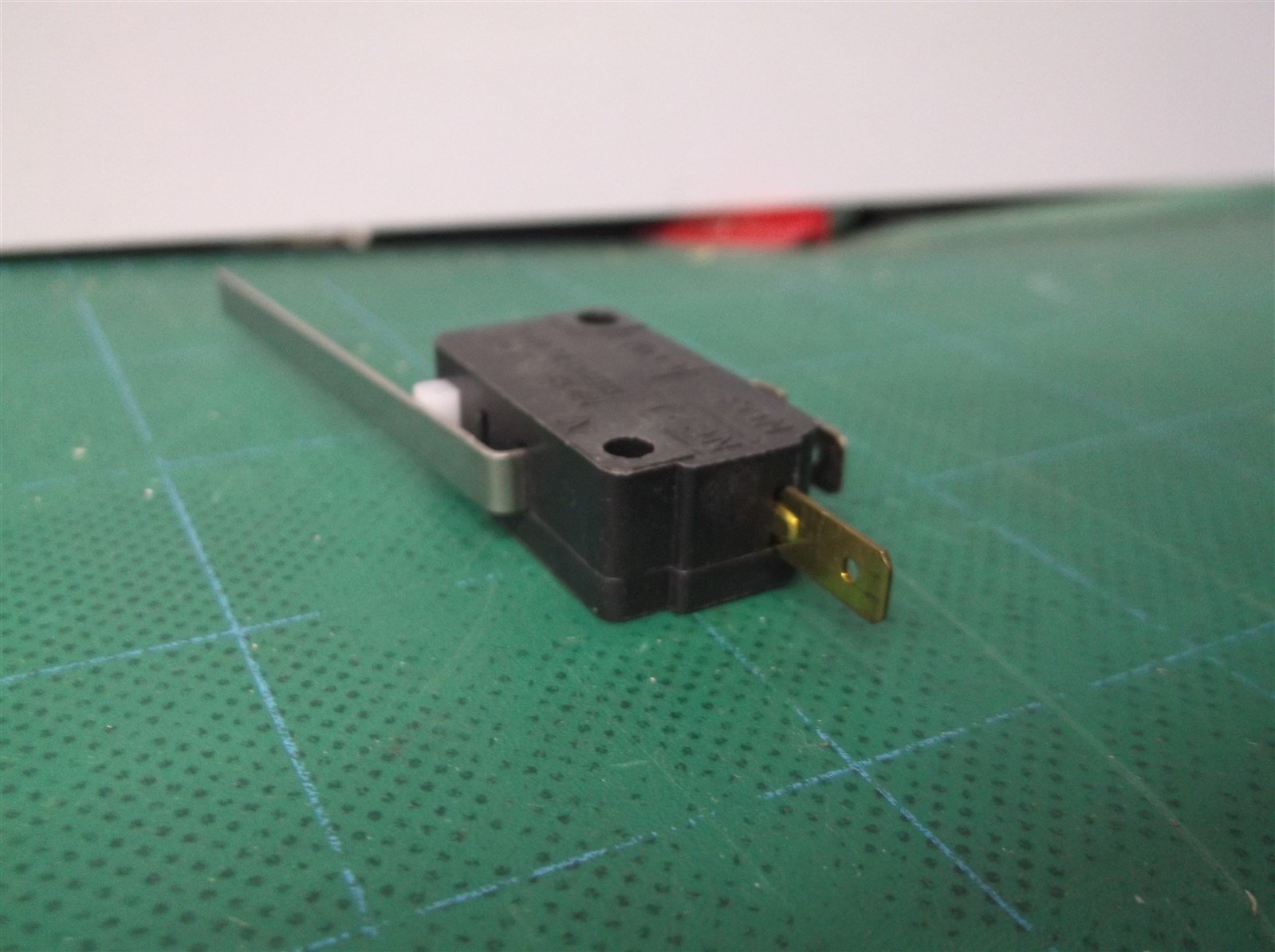

This Listing is For a New HONEYWELL V71B27D8048 Microswitch, Miniature, Straight Lever, SPST, Quick Connect, 11 A The HONEYWELL part V7-1B27D8-048 is a MICRO SWITCH™ Miniature Basic Switch from the V7 Series. This switch features a single pole normally open (SPNO) configuration with a maximum current rating of 11 A at 125, 250, or 277 Vac. The switch is equipped with a 59.4 mm (2.34 in) straight lever actuator that requires a maximum operating force of 50 g (1.76 oz) for actuation. It has 2.9 mm (0.11 in) mounting holes for easy installation. With a temperature range of -40 °C to 85 °C (-40 °F to 185 °F), this switch can withstand a wide range of temperature conditions. It features a 4.75 mm x 0.51 mm (0.187 in x 0.02 in) quick connect termination for convenient wiring. This switch is UL and CSA certified, ensuring its quality and compliance with industry standards. It is a reliable and durable component for various applications that require a compact and versatile basic switch.
Sold As Is
As Seen In Picture(s)
NOTE: 30 day return policy From purchase date. Part(s) must be returned in a re sale-able Condition. Subject To 15% restock fee upon exception.
Please check availability And measurements And part numbers prior To order.
Thanks For viewing our listings. Please Click "Ask A Question" Or "Contact Seller" located On The right; middle section Of this listing, if you have a Parts need that you do not see listed here. We will do our Best To locate The Parts you need And make every effort To save you money.;
Gracias por ver nuestros anuncios. Por favor, envia un mensaje o busca el boton "Contact Seller" en el medio de esta listado, si necesita alguna's pieza que No veas. Mencionado Haremos nuestro mejor esfuerzo para localizar las piezas que necesita y hacer todo lo posible para ahorrar dinero.
Thanks CEA Services, Land O' Lakes, Florida
cq2b2 11 T20
