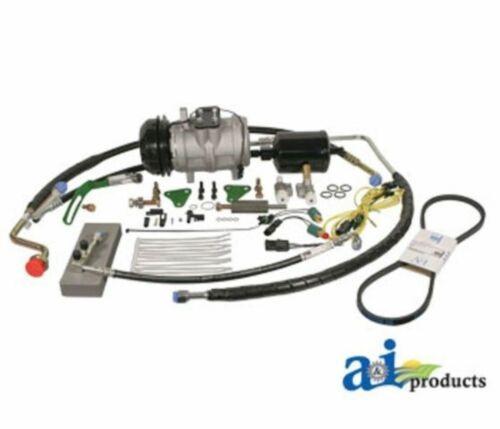

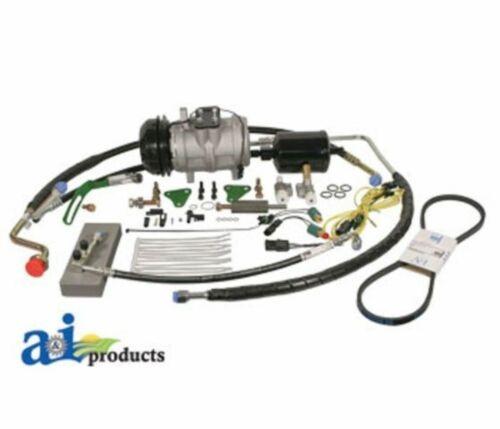

RE233249SPL A6 Conversion Kit (Includes New Denso Style Compressor)
LOWER RADIATOR HOSE MAY NEED TO BE SHORTENED FOR ADEQUATE CLEARANCE ON COMPRESSOR PULLEY.
Complete Kit Converts A6 Compressor To New Denso Compressor.
If using R134 freon, must order 461-3111 and 461-3112 fittings for charging system ports.
Dim A (1) New Compressor
Dim B (2) Conversion Lines
Dim C (3) Orings & Connectors
Dim D (4) Hardware & Brackets
Dim E (5) Fuse Elimination Kits
Dim F (6) Harness w/ Pressure Switches
Dim G (7) Receiver Dryer
Dim H (8) Belt
Included in this Kit:
Group Description Component Size / Desc Qty
Valve A-RE10982 1.00
MANIFOLD-DISCHARGE A-RE10981 1.00
MANIFOLD-SUCTION A-RE10980 1.00
HOSE, REFRIGERANT A-RE233131 1.00
Line A-RE55554 1.00
ADAPTER, COMPRESSOR A-R228845 1.00
PLATE, MOUNTING A-R228846 2.00
STRAP, COMPRESSOR ADJ. A-R63901 1.00
BELT, FAN A-R73189 1.00
SPACER A-R183947 2.00
DRIER A-804-464 1.00
O-RING REPLACEMENT 10 PK A-011N .20
SUPPORT, HOSE A-R203463 1.00
Lo-Press. Switch A-RE24308 1.00
SWITCH, HI-PRESS./ A/C A-RE24307 1.00
CABLE TIE 7 1/2" A-14B505 10.00
CABLE TIE 11" A-14B506 .01
Wiring Harness A-RE203464 1.00
NUT DIN 934 A-M12NUT 1.00
LOCKWASHER, M12 A-HDM12LW 2.00
BOLT, M10 X 25MM A-HDM10X25BLT 5.00
LOCKWASHER, M10 A-HDM10LW 5.00
BOLT, M12 X 30MM A-HDM12X30BLT 1.00
BOLT, M12 X 60MM A-HDM12X60BLT 1.00
WASHER 3/8" LOCK A-HD38LW 1.00
SHCS 8MM X 1.25 X 16MM A-HDM8X16SHCS 4.00
COMPRESSOR, DENSO A-RE12513 1.00
Elec. Terminal A-R78061 1.00
Elec.Conn. Seal A-R78063 1.00
Line A-RE57341 1.00
CONNECTOR, ELECTRICAL A-R78052 1.00
CAP SCREW 3/8-16X1-1/2 A-HD38X112NCBLT 1.00
O-RING REPLACEMENT 10 PK A-023N .10
A-015N .10
A-020X2.4MG .40
Diode A-RE23766-BP 1.00
Elec. Terminal A-T34067 1.00
WIRING & INSTALLATION INS A-TM0074 1.00
COMPRESSOR INSTALLATION A-TM0075 1.00
Associated Items:
Item Number Description Qty
A-AH140818 Expansion Valve 1
Sections and Models:
Air Conditioning Parts > Compressor
John Deere TRACTOR: 4040 (W/404 ENGINE)
John Deere TRACTOR: 4230
John Deere TRACTOR: 4240
John Deere TRACTOR: 4430
John Deere TRACTOR: 4440
John Deere TRACTOR: 4630
John Deere TRACTOR: 4640
John Deere TRACTOR: 4840
Air Conditioning Parts > Conversion Kit
John Deere TRACTOR: 4040 (W/404 ENGINE)
John Deere TRACTOR: 4230
John Deere TRACTOR: 4240
John Deere TRACTOR: 4430
John Deere TRACTOR: 4440
John Deere TRACTOR: 4630
John Deere TRACTOR: 4640
John Deere TRACTOR: 4840
