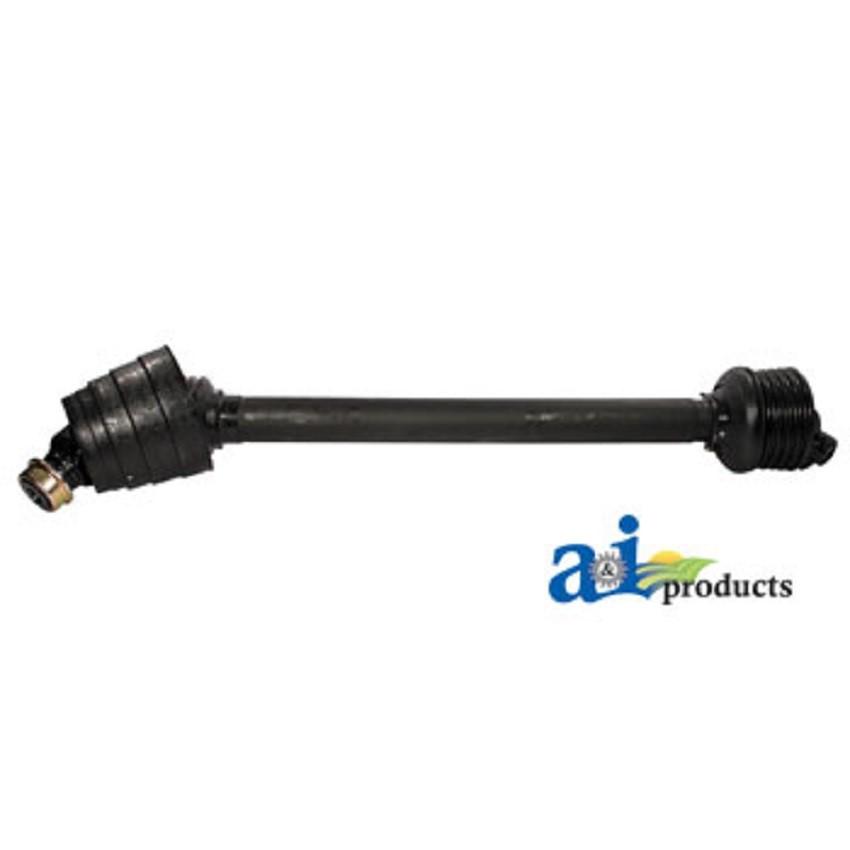

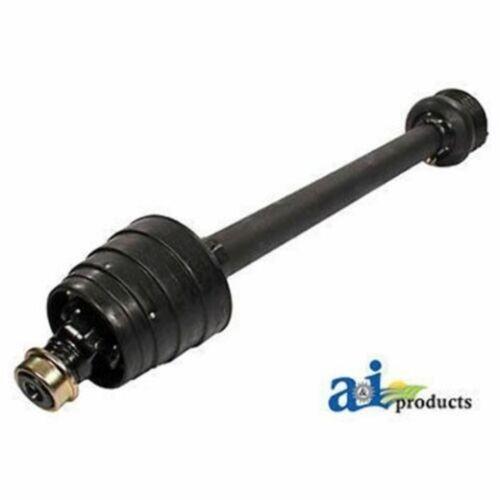

WC584811A Complete Constant Velocity Shafts (W258012100101-A)
Complete Constant Velocity Tractor Half Shaft. Minimum C-to-C length: 48" (1210) mm; Total Collapsed C-to-C length: 58" (1462 mm). Tractor end: 1-3/8" 6 Spline. Implement end: 1-3/8" 6 Spline. Star style tubing, type B. For 2580 series. Fits Woods Rotary Cutters; Walterscheid WWE series.
" It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

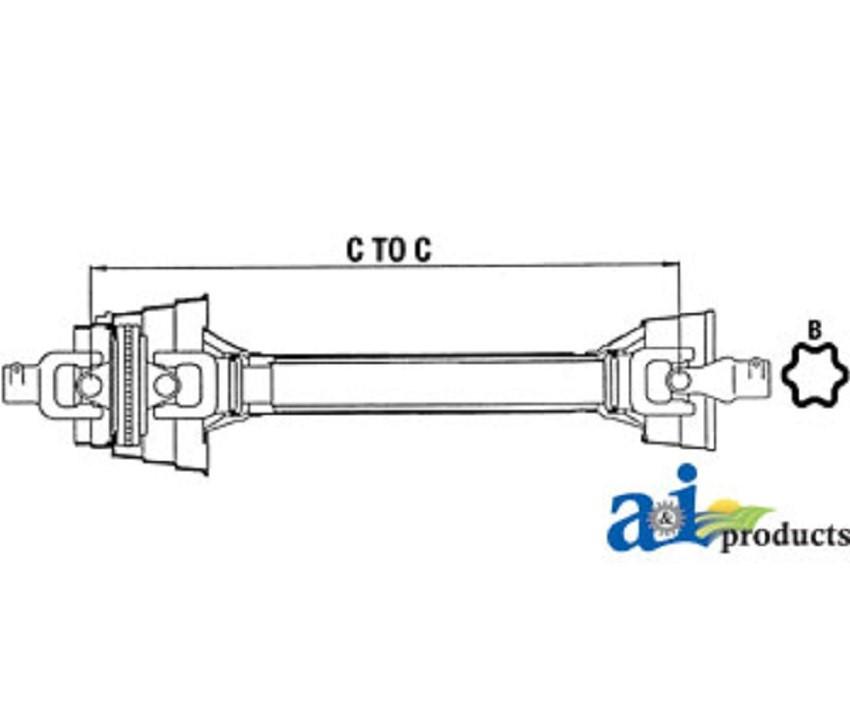

C to C Min 1210 MM/ 48"
Implement 1 3/8" - 6 Clamp
Replaces W258012100101-A
Series 2580
Size 2580
Total Length 58"
Tractor 1 3/8" - 6 AS Lock
Tube Style B
Replaces:
PM14507948 JOHN DEERE
PM14507955 JOHN DEERE
VTE1045 VAPORMATIC
W25801210-0101-A EDCOR
W258012100101-A DRIVE-LINE
A-110680001 VERMEER
14507948 DRIVE-LINE
14507955 DRIVE-LINE
Crossed From:
AB81010 A & I MEGA-CROSS
SW06324 A & I MEGA-CROSS
W14507948DS CASE-IH
W14507955DS CASE-IH
W2580-1210-01Z EDCOR
Included in this kit:
METRIC CV HALF SHAFT A-W2580TR121001-A (1)
Z 1/2 W2580 MA 1210 1.3/8 A-W2580MA121001-A (1)
Item Components:
A-P10X90 Roll Pin, 10 MM x 90 MM, 2 pack (2)
A-WSC252580-A Complete Safety Shield (1)
A-W097140-A Inboard Yoke, used w/ S5 Profile Tubing (1)
A-W312209-A Cross & Bearing Kit (1)
A-W331573 Inboard Yoke, used w/ S4GA Inner Profile Tubing (1)
A-W333336 Inner Profile Tube, w/ Drill Hole, S4GA (1)
A-W334109-A Cross & Bearing Kit (2)
A-W341738-A Outer Profile Tube, w/ Drill Hole, S5 (1)
A-W362428-A Implement Yoke, 1 3/8" - 6 Spline w/ AS Lock (1)
A-W363617-A Tractor Yoke, Splined 1 3/8" - 6 Spline w/ AS Lock (1)
A-W365725-A Center Housing (1)
