MG771716 Radiator Fits JD 675

MG771716 Radiator Fits JD 675

$736.58 $390.39 Sale

MG771716 Radiator

Our new radiator is designed and built to precise dimensional specifications to ensure an exact fit. Each radiator has a stamped brass tank, undergoes a rigorous quality inspection, and is 100% leak tested. This radiator has 8 fins per inch and 3 rows of tubes. It is 17.812" tall and the core size is 18" wide and 2.5" thick. This radiator fits the John Deere Skid Steer Loader 675 (with diesel engine). (NOTE: replaces 771716)

" Bottom radiator hose on LH side sitting in operator's seat. For SN 380001-750000, 0100001-010392 w/o construction package & SN 380001-750000, 015001-015370 w/ construction package.

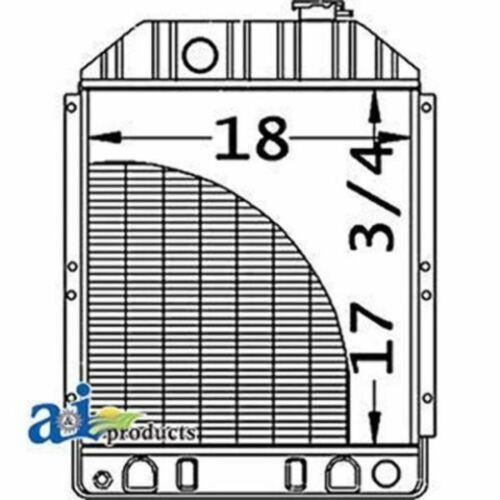

Dim A (1) Core Size: 18.000" Wide
Dim B (2) 17.812" High
Dim C (3) 3 Rows of Tubes
Dim D (4) 8 Fins per Inch
Dim E (5) 2 1/2" Thick Core
Dim F (6) Uses MG850522 Upper & MG850521 Lower Hose

Replaces:
A-771716 NEW HOLLAND

Fits the following models:
Cooling Systems > Radiators and Related Parts
John Deere SKID STEER LOADER: 675 (W/ DIESEL ENGINE)

Please check availability prior to order!
