YY01V00003R300 Arm Cylinder Seal Kit Fits Kobelco SK115SR SK135SR

YY01V00003R300 Arm Cylinder Seal Kit Fits Kobelco SK115SR SK135SR

Regular price $362.91 $163.02 Sale

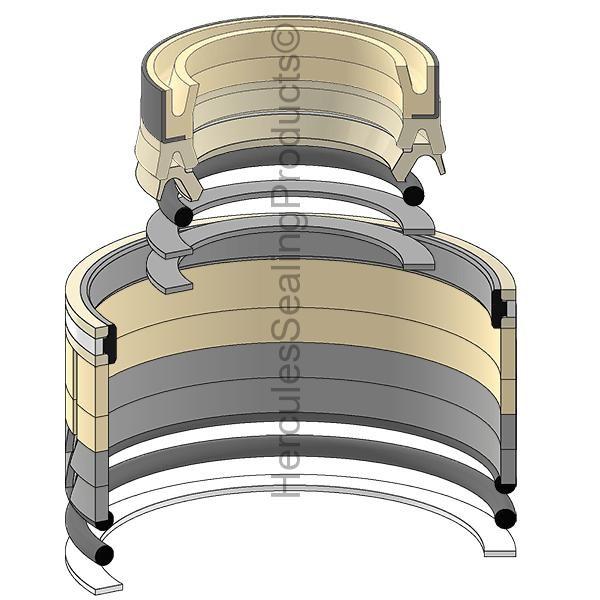

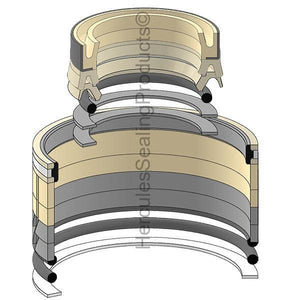

Kobelco Aftermarket Style YY01V00003R300 Hydraulic Cylinder Seal Kit

This is a New Seal Kit that fits the following Models and Cylinder part numbers

Model Num. Application Cylinder Rod  Bore Serial Num. Part #
SK115SRDZ ARM YY01V00003F1 80 mm 115 mm YY00101- KOB-YY01V00003R300
SK115SRDZ ARM YY01V00003F1 80 mm 115 mm YY02-03001- KOB-YY01V00003R300
SK115SRDZ ARM YY01V00003F2 80 mm 115 mm YY00101- KOB-YY01V00003R300
SK115SRDZ ARM YY01V00003F2 80 mm 115 mm YY02-03001- KOB-YY01V00003R300
SK115SRDZ-1E ARM YY01V00003F1 80 mm 115 mm YY03-04555-YY03-05770 KOB-YY01V00003R300
SK115SRDZ-1E ARM YY01V00003F1 80 mm 115 mm YY04-06001- KOB-YY01V00003R300
SK115SRDZ-1E ARM YY01V00003F2 80 mm 115 mm YY03-04555-YY03-05770 KOB-YY01V00003R300
SK115SRDZ-1E ARM YY01V00003F2 80 mm 115 mm YY04-06001- KOB-YY01V00003R300
SK115SRDZ-1E ARM YY01V00003F3 80 mm 115 mm YY04-06001- KOB-YY01V00003R300
SK115SRDZ-1E ARM YY01V00009F1 80 mm 115 mm YY04-06001- KOB-YY01V00003R300
SK135SR ARM YY01V00003F1 80 mm 115 mm YY02-03001- KOB-YY01V00003R300
SK135SR ARM YY01V00003F2 80 mm 115 mm YY02-03001- KOB-YY01V00003R300
SK135SR-1E ARM YY01V00003F1 80 mm 115 mm YY03-04555- KOB-YY01V00003R300
SK135SR-1E ARM YY01V00003F2 80 mm 115 mm YY03-04555- KOB-YY01V00003R300
SK135SRL ARM YY01V00003F1 80 mm 115 mm LK01-01001- KOB-YY01V00003R300
SK135SRL ARM YY01V00003F2 80 mm 115 mm LK01-01001- KOB-YY01V00003R300
SK135SRL-1E ARM YY01V00003F1 80 mm 115 mm LK03-01107-

Please verify part number prior to order.


Thanks for viewing our listings. Please click "Ask A Question" or call us if you have a parts need that you do not see listed here. We will do our best to locate the parts you need and make every effort to save you money.
For parts information in English please call Chris at (813)365-0042.



Gracias por ver nuestros anuncios. Por favor, envia un mensaje o simplemente llamenos si necesita alguna's pieza que no ves listado. Mencionado Haremos nuestro mejor esfuerzo para localizar las piezas que necesita y hacer todo lo posible para ahorrar dinero.

Para espanol llame a Darcy a el (813) 365-0042.

SK135SRL-1E ARM
