W2480MACV121001 Implement Half PTO, 2480 Ser., w/ CV, 1210 mm, 1 3/8" 6 Spl.

W2480MACV121001 Implement Half PTO, 2480 Ser., w/ CV, 1210 mm, 1 3/8" 6 Spl.

$1,913.82 $1,014.32 Sale

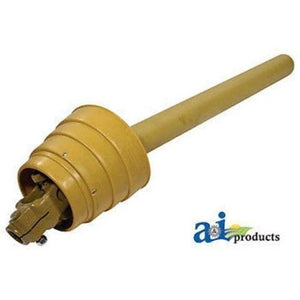

W2480MACV121001 Implement Half PTO, 2480 Ser., w/ CV, 1210 mm, 1 3/8" 6 Spl. Clamp Yoke

Implement Half PTO. C-to-C Length: 48" (1210 mm). Constant Velocity 1-3/8" 6 Spline. Replaces Walterscheid No. W2480MACV121001. Fits Walterscheid WWZ Series. NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
" It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Replaces Walterscheid Part No: W2480MACV121001
series 2480
size 1 3/8" - 6 clamp
c-to-c length 1210 MM/ 48"

Item Components:
A-P10X80 Roll Pin, 10 MM x 80 MM , 2 pack (1)
A-W089551 Outer Profile Tube, 2aG (1)
A-W341587 Inboard Yoke, used w/ 2aG Outer Profile Tubing (1)
A-W342221 Cross & Bearing Kit (2)
A-W365722 Center Housing , 80 Degree CV (1)

Fits the following models:
Driveline > Machine Half CV Driveline
Walterscheid WWZ Series: 2480

Please check availability prior to order!
