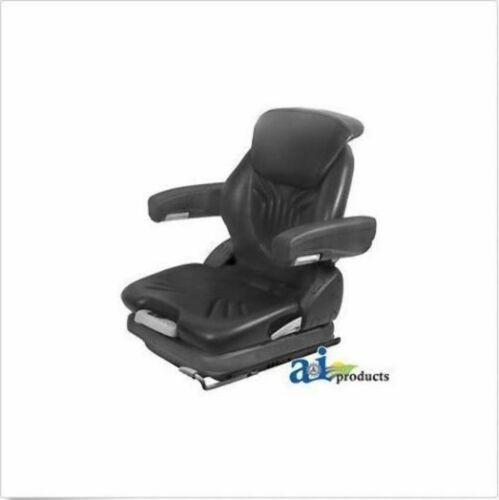

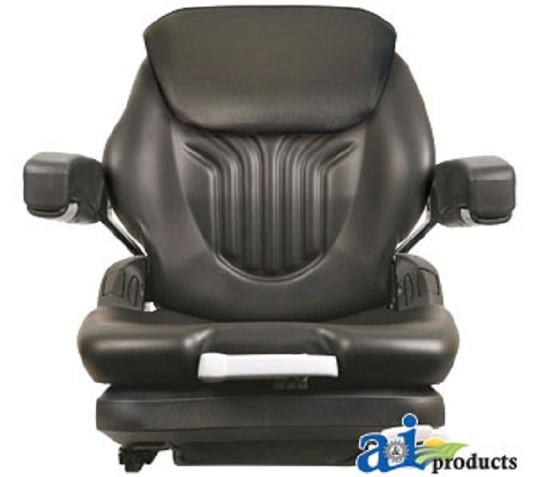

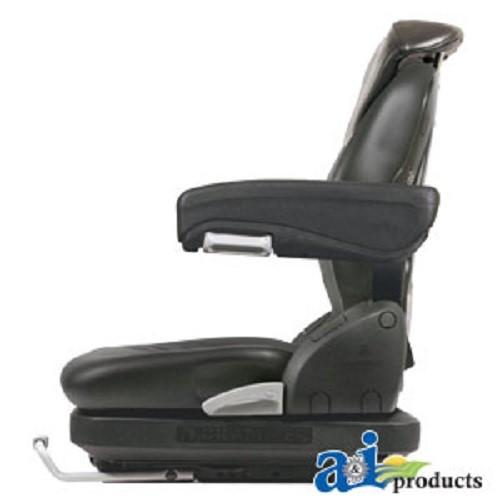

MSG65BLV-ASSY Grammer Seat Assembly, BLK VINYL

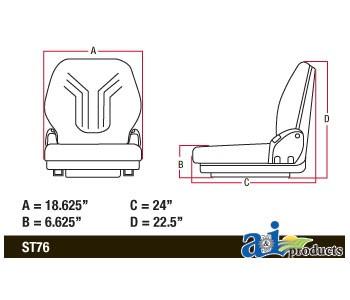

Reference: ST76
The secret behind comfortable suspension is the ability to adjust it to each driver's weight. A tapered seatback, improved lateral support, and optimum seat cushion angle and multifunction ventilation channels ensure a comfortable sitting experience.
• 2.4" (60 mm) Stroke Mechanical Suspension
• Operator weight 100-375 lbs. (45-170 kg.)
• Includes: Armrest Kit, Backrest Extension Kit

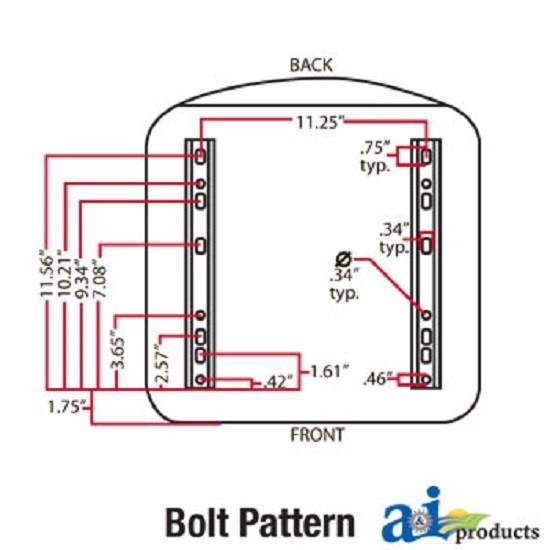

• All dimensions & specifications must be checked before ordering. This is a universal seat meant for a flat mounting surface. Some applications may require drilling & bracket fabrication to mount seat.
Crossed From:
SW07983 A & I MEGA-CROSS
Included in this kit:
Group Description Component Size / Desc Qty
SEAT, BLACK; VINYL A-MSG65BLV 1.00
ARM REST KIT, A60/320; RH A-ARK6575RH 1.00
ARM REST KIT, A60/320; LH A-ARK6575LH 1.00
BACKREST EXT. KIT, BLACK; A-BRK75BLV 1.00
Seats > Grammer Seats
(Miscellaneous) (UNDEFINED): SEVERAL
Ariens / Gravely RIDING MOWER: MAX ZOOM 2560
Ariens / Gravely RIDING MOWER: ZOOM 2040
Ariens / Gravely RIDING MOWER: ZOOM 2042XL
Ariens / Gravely RIDING MOWER: ZOOM 2350
Ariens / Gravely RIDING MOWER: ZOOM 2548XL
Ariens / Gravely RIDING MOWER: ZOOM 34
Ariens / Gravely ZERO-TURN: MAX ZOOM 2552
Bad Boy RIDING MOWER: 4800 PUP
Bad Boy RIDING MOWER: 5200 LIGHTNING Z
Bad Boy RIDING MOWER: 5200 PUP
Bad Boy RIDING MOWER: 6000 LIGHTING Z
Bad Boy RIDING MOWER: 6000 LPG
Bad Boy RIDING MOWER: 6000 PUP
Bad Boy RIDING MOWER: 6000AOS
Bad Boy RIDING MOWER: 6000AOSD
Bad Boy RIDING MOWER: 7200 LIGHTING Z
Bad Boy RIDING MOWER: 7200AOS
Bad Boy RIDING MOWER: 7200AOSD
Bobcat SKID STEER LOADER: A300
