| CS54816 |
Driveline; W/ 7" Friction Clutch |

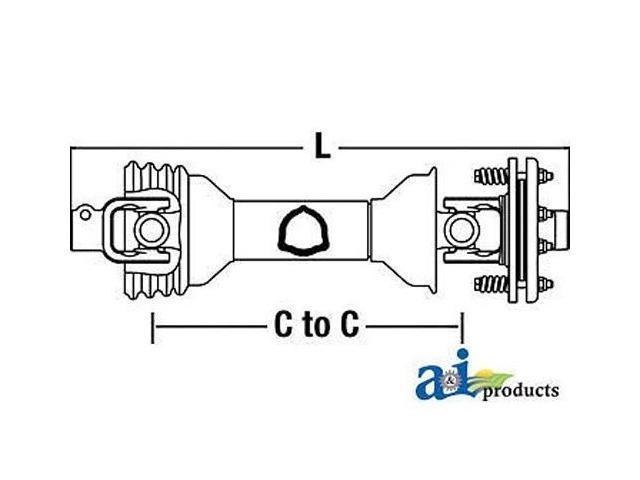

Complete Driveline with 7" Friction Clutch. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-C Length: 74" (1880 mm), Total Collapsed Length: 58" (1470 mm). Tractor end: 1-3/8" - 6 Spline. Implement end.: 1-3/8" 21 Spline. FF1 FR. CL., Clutch Dia.: 7.09". Series: 100. Category 4 (47 hp). Fits Bondioli & Pavesi 100 Series. This is a complete replacement; components from original will not interchange.
" It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
| size |
5 |
| min c-to-c length |
1210mm / 48" |
| max c-to-c length |
1880mm/ 74" |
| total collapsed length |
1470mm / 58" |
| tractor |
1 3/8-6 |
| implement |
1 3/8-21 spl. FF1 FR.CL. |
| clutch diameter |
7.09" |
| Series |
100 |
| Category |
4 (47HP) |
Replaces:
A-AW27989 DRIVELINE
A-AW30401 JOHN DEERE
A-AW30402 JOHN DEERE
Item Components:
A-BP125091500-A Inner Tube (1)
A-BP125101500-A Outer Tube (1)
A-BP204056860-CS Outer Tube Yoke (1)
A-BP204056861-CS Inner Tube Yoke (1)
A-BP41205-A Cross & Bearing Kit (2)
A-BP507050351-A Tractor Yoke, Splined 1 3/8" - 6 Spline w/ QDP (1)
A-P10X60 Roll Pin, 10 MM x 60 MM, 2 pack (1)
A-P10X70 Roll Pin, 10 MM x 70 MM, 2 pack (1)
A-SK2C Shield & Bearing Kit; CS5-CS8 (1)
